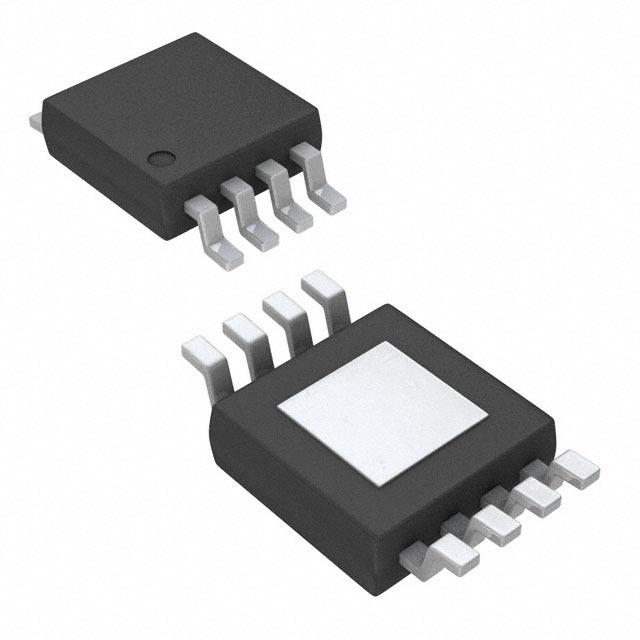

- TPS7A4901DGNR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC632487
-
Category:Voltage Regulator
-
Package:PowerPad-MSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Single Channel LDO Vin 3V to 36V, 150mA, Ultra-Low Noise, High PSRR, Low-Dropout Linear Regulator LDO Regulator Pos 1.194V to 33V 0.15A 8Pin HVSSOP EP T/R
-
Stock Locations:
-
Availability:1,048 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.39
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS7A4901DGNR is a 36V, 150mA, ultra low noise, positive linear regulator in 8 pin MSOP package. This is including a CMOS logic-level-compatible enable pin and capacitor programmable soft-start function that allows for customized power management schemes. Other features include built-in current limit and thermal shutdown protection to safeguard the device and system during fault conditions. It is designed using bipolar technology and is ideal for high-accuracy, high-precision instrumentation applications where clean voltage rails are critical to maximize system performance. This design makes IC an excellent choice to power operational amplifiers, ADCs, DACs and other high-performance analogue circuitry. This linear regulator is suitable for post dc/dc converter regulation. By filtering out the output voltage ripple inherent to dc/dc switching conversion, maximum system performance is provided in sensitive instrumentation, test and measurement, audio and RF applications.
- Input voltage range from 3V to 35V
- Noise of 12.7µVRMS (20Hz to 20KHz), 15.4µVRMS (10Hz to 100KHz)
- Power supply ripple rejection is -72dB (120Hz), - >= 52dB (10Hz to 400KHz)
- Adjustable output range from 1.194 V to 33 V
- Maximum output current of 150mA
- Dropout voltage of 260mV at 100mA, 333mV at 150mA
- Stable with ceramic capacitors >= 2.2 µF
- CMOS logic level compatible enable pin
- Fixed current limit and thermal shutdown protection
- Operating temperature range from -40°C to 125°C
- ESD sensitive device, take proper precaution while handling the device.
TPS7A4901DGNR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PowerPad-MSOP-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.194V ~ 33V |
| Output Current | 150 mA |
| Supply Current | 100µA ~ 800µA |
| Number of Positions | 8 Position |
| Power Dissipation | 1.83 W |
| Quiescent Current | 60.0 µA |
| Output Capacitor Type | Ceramic |
| voltage rating | 333 mV |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 35 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 33 V |
| Output Voltage (Min) | 1.194 V |
| Output Current (Max) | 0.15 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1830 mW |
| Accuracy | ±1.5 % |
| Input Voltage | 35V ~ 3V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
