CMP401GSZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC265874
Category:
Comparator, Analog Comparator IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES CMP401GSZ Analog Comparator, Quad, High Speed, 4, 17ns, 3V to ± 5V, SOIC, 16Pins
Stock Locations:
Availability:
1,321 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.67

Updated at 26/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details

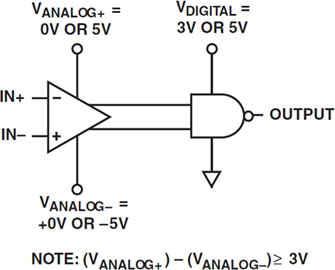

The CMP401 and CMP402 are 23 ns and 65 ns quad comparators with separate input and output supplies. Separate supplies enable the input stage to be operated from +3 V to as high as ±6 V. The output can be supplied with either 3 V or 5 V as determined by the interface logic or available supplies. Independent input and output supplies combined with fast propagation make the CMP401 and CMP402 excellent choices for interfacing to portable instrumentation.
The CMP401 and CMP402 are specified over the extended industrial (–40°C to +125°C) temperature range. Both are available in narrow 16-lead SOIC surface-mount packages and 16-lead TSSOP.
Applications
Battery-operated instrumentation
Line receivers
Level translators
Read channel detection
### Features and Benefits
23 ns or 65 ns propagation delay
Single-supply operation
Compatible with 3 V and 5 V logic
Separate input and output sections
Low power
Wide input range: –5 V to +3.9 V

Show

CMP401GSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.00 V
Supply Current	2 mA
Number of Channels	4 Channel
Number of Positions	16 Position
Power Dissipation	110 mW
Common Mode Rejection Ratio	60 dB
Input Offset Voltage	3 mV
Input Bias Current	3000 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 5V
Supply Voltage (Max)	3.9 V
Supply Voltage (Min)	5 V
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
