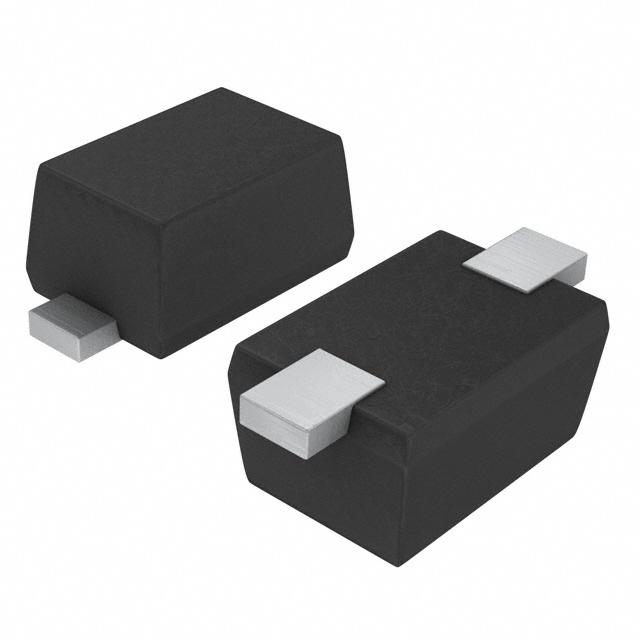

Image is for your reference only,please check specifications for details
Updated at 26/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Zener Diode 36V 150mW ±3% Surface Mount EMD2
EDZVT2R36B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SOD-523-2 |
| Capacitance Tolerance | ±3 % |
| Number of Positions | 2 Position |
| Power Dissipation | 150 mW |
| Test Current | 2 mA |
| Zener Voltage | 36 V |
| Input Power (Max) | 150 mW |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
