AD9461BSVZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC16643433
Category:
Analog to Digital, ADC IC
Package:
TQFP-100
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD9461BSVZ Analog to Digital Converter, 16Bit, 130MSPS, Single, 3.3V, 5V, TQFP
Stock Locations:
Availability:
9 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 67.96

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

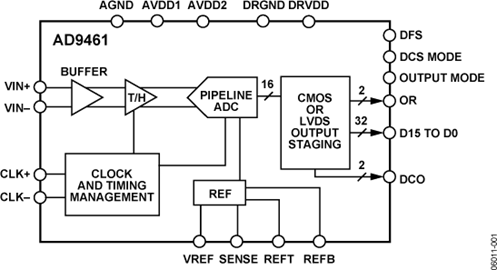

130 MSPS guaranteed sampling rate 78.7 dBFS SNR/90 dBc SFDR with 10 MHz input (3.4 V p-p input, 130 MSPS) 77.7 dBFS SNR with 170.3 MHz input (4.0 V p-p input, 130 MSPS) 77.0 dBFS SNR/84 dBc SFDR with 170 MHz input (3.4 V p-p input, 130 MSPS) 76.3 dBFS SNR/86 dBc SFDR with 225 MHz input (3.4 V p-p input, 125 MSPS) 89 dBFS two-tone SFDR with 169 MHz and 170 MHz (130 MSPS) 60 fsec rms jitter Excellent linearity DNL = ±0.6 LSB typical INL = ±5.0 LSB typical 2.0 V p-p to 4.0 V p-p differential full-scale input Buffered analog inputs LVDS outputs (ANSI-644 compatible) or CMOS outputs Data format select (offset binary or twos complement) Output clock available

Show

AD9461BSVZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	TQFP-100
Supply Voltage (DC)	3.30V (min)
Supply Current	405 mA
Number of Circuits	1 Circuit
Number of Bits	16 Bit
Power Dissipation	2.4 W
Sample Rate	130000 KSPS
Resolution (Bits)	16.0 Bit
Input Capacitance	6.00 pF
Input Impedance	1.00 kΩ
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	1 Channel
Supply Voltage (Max)	5 V
Supply Voltage (Min)	3.3 V
	Show
Size-Length	14 mm
Size-Width	14 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	3A001
