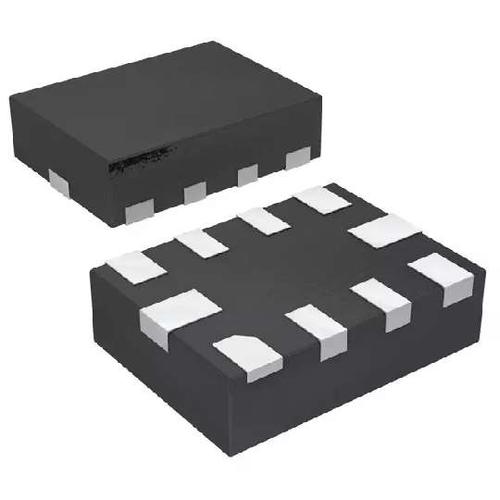

Image is for your reference only,please check specifications for details

TS5A23157RSER - TI
Manufacturer:
TI
ManyChip's Part#:
MC7226844
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
UQFN-10
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TS5A23157RSER Analogue Switch, Dual Channel, SPDT, 2Channels, 10Ω, 1.65V to 5.5V, UQFN, 10Pins
Stock Locations:
Availability:
4 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.2

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS5A23157RSER is a single-pole double-throw (SPDT) dual Analog Switch designed to operate from 1.65 to 5.5V. This device can handle both digital and analog signals. Signals up to 5.5V (peak) can be transmitted in either direction.
Specified break-before-make switching
Low charge injection
Excellent on-resistance matching
Low total harmonic distortion
Excellent on-resistance matching
Latch-up performance exceeds 100mA Per JESD 78, Class II
ESD performance tested per JESD 22
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TS5A23157RSER Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UQFN-10
Number of Outputs	4 Output
Supply Current	1 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	10 Position
Voltage Nodes	1.80 V, 2.50 V, 3.30 V, 5.00 V
Bandwidth	220 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	220 MHz
Supply Voltage	1.65V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
