Description

Harting Heavy Duty Power Connectors (HAN Series) are ideal for industrial applications with harsh requirements. Harting has developed this line to help provide a solution to the wide range of needs in industrial connectors in mechanical and plant engineering. They are also used in the design and construction of equipment, in medical technology and construction machines.
Harting offers kits as complete solutions to the HAN connector series. The Harting kits provide one part number solutions, making it easy to ordering and inventory control. Each Han-Kit includes male and female inserts, screw terminated contacts, side or top entry hood, bulkhead mounted housing, and cable gland.

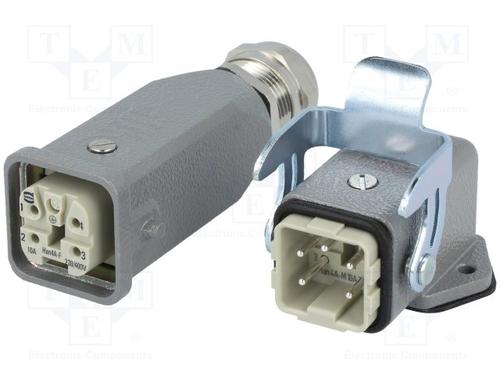

This is a HAN 4A Metal Kit which includes:
Hood - HAN 4A Straight Top Entry
Housing - Right Angle Bulkhead Mount
Male and Female Inserts - 4 pole (plus ground)
Contacts - screw terminated already loaded in the connector (18-14 Awg)
Cable Gland - M20
* Kit is only one part number resulting in easy ordering and inventory control
* No special tools required (Field Termination)
* High number of cycles
* Low actuation force
* Robust/Durable heavy duty protection

Show

10200040003 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	5 Pin
Case/Package	Metal
Number of Contacts	5 Contact
Operating Voltage	600 V
Current Rating	10 A
Number of Positions	4 Position
Voltage Rating	600 V
	Show
Contact Material	Copper Alloy
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
