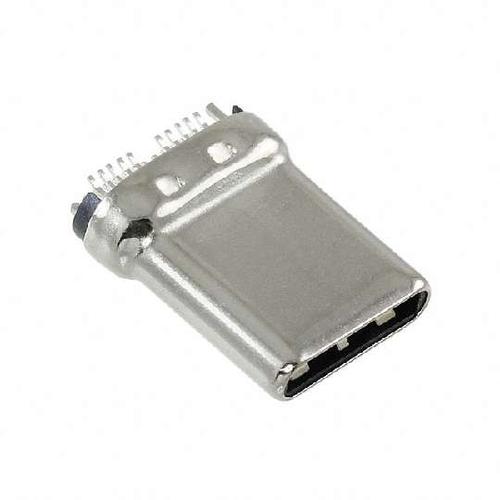

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 Position Board Edge, Straddle Mount
1054440001 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | Through Hole |
| Number of Contacts | 22 Contact |
| Gender | Male |
| Orientation | Right Angle |
| Number of Mating Cycles | 10000 Cycle |
| Current Rating (Max) | 5A/触头 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating (Max) | 30 VAC |
| Voltage Rating | 30VAC, 30VDC |
| Show | |
| Size-Height | 3.84 mm |
| Housing Color | Black |
| Contact Material | Copper Alloy |
| Operating Temperature | -30℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
