1101M2S3AV2BE2 C&K Components - Slide Switch, Switch Slide

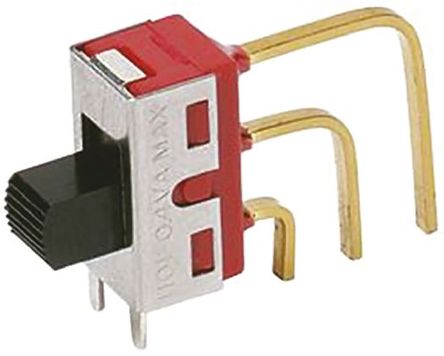

Image is for your reference only,please check specifications for details

1101M2S3AV2BE2 - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC10073538
Category:
Slide Switch, Switch Slide
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Ползунковый переключатель, вкл-выкл-вкл, SPDT, боковой ползунок, 20 В перем. тока, 20 В пост. тока, 0,4 ВА, выводы для печатной платы, монтаж на кронштейн / сквозное отверстие
Stock Locations:
Availability:
10,134 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.88

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Ползунковый переключатель серии 1000 с герметизацией выводов эпоксидной смолой, совместим с нижней промывкой плат. Миниатюрный переключатель имеет разнообразные приводы и выводы, а также крепежные лапки для панельного монтажа. Он подходит для использования в телекоммуникационных приложениях.
Корпус из DAP (диаллилфталата), класс горючести UL94V-0
Стандартный привод из черного нейлона
Корпус из нержавеющей стали
Опора переключателя из латуни или стали с матовым лужением
Торцевые контакты из медного сплава
10⁹ Ом минимальное сопротивление изоляции
1000 В (действующее значение) минимальная электрическая прочность на уровне моря
Рабочая температура от -30 до 65°C

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	DIP
Voltage Rating (DC)	20 V
Voltage Rating (AC)	20 V
Current Rating	0.02 A
Number of Rows	1 Row
Orientation	Vertical
Contacts Type	SPDT
Contact Current Rating	400mA @20V
Rating Power (Max)	0.4 W
Operating Temperature (Max)	65 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	20 VDC
Voltage Rating (DC Max)	20 V
Voltage Rating (AC Max)	20 V
Maximum Contact Resistance (Max)	<10 mΩ
	Show
Size-Length	6.6 mm
Size-Width	6.60 mm
Size-Height	12.7 mm
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 65℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509050
ECCN Code	EAR99
