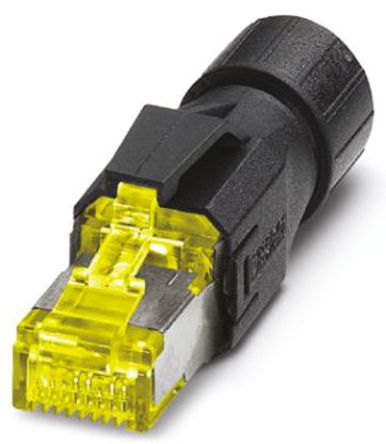

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

1419001 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Contacts	8 Contact
Gender	Male
Wire Gauge	24AWG ~ 26AWG
Contact Plating	Gold
Insulation Resistance	100 MΩ
Number of Positions	8 Position
Number of Mating Cycles	750 Cycle
Current Rating (Max)	1.75 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	50 V
Voltage Rating	50 V
	Show
Size-Length	55.60 mm
Size-Width	55.6 mm
Size-Height	17.2 mm
Housing Color	Black
Color	Yellow
Contact Material	Copper Tin
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536694030
ECCN Code	EAR99
