Description

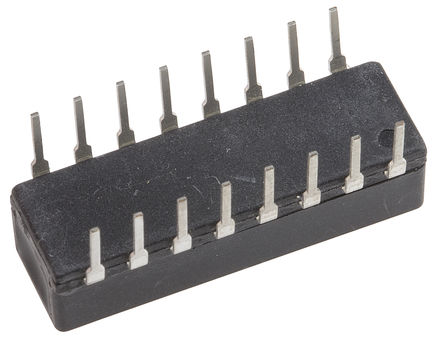

The 1600C is a quad Isolation Transformer for use in digital circuits. It is particularly suited to isolating microprocessor bus connections and performing logic level translation. Being completely passive, power savings are offered over opto-coupled or emitter follower solutions.
Logic translation
Bi-directional
Invert/non-invert
TTL-CMOS conversion
Toroidal construction
Low profile
500Vrms Isolation

Show

1600C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP
Input Voltage (DC)	5.00 V
Output Voltage	5.00 V
Number of Channels	4 Channel
Number of Positions	16 Position
Inductance	3 mH
Rise Time	10 ns
Isolation Voltage	500 V
Maximum Forward Voltage (Max)	5 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
	Show
Size-Length	22.5 mm
Size-Width	6.86 mm
Size-Height	6.44 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
