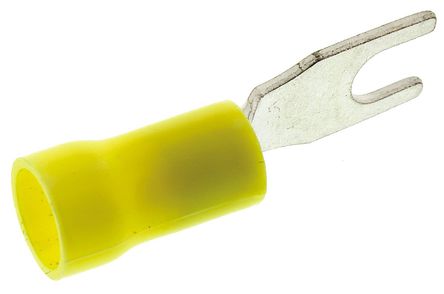

Image is for your reference only,please check specifications for details

165015 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC6632009
Category:
Solderless Terminal
Package:
-
Datasheet:
Datasheet 3D Model
Description:
U terminal 2.7mm² 6.6mm² Hole Ø=4.3mm Partially insulated Yellow TE Connectivity 165015 1 pc(s)
Stock Locations:
Availability:
241 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.22

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PLASTI-GRIP series Solderless Terminal and Splice designed specifically to answer the need for inexpensive, insulated electrical terminations. It accommodate wire sizes from 22AWG through 2/0AWG. Carefully engineered application tooling has been developed to ensure uniformly high quality terminations. Tool and terminal has been designed as a team to promote ease and speed of application and at the same time to provide precise crimping pressure for every wire size. The wire and the terminal barrel form a homogeneous mass of metal, providing a connection of maximum conductivity, tensile strength and high resistance to corrosion. The quality performance, the facility of installation and the inherent simplicity make them ideal for many industrial applications. PLASTI-GRIP products are available as rings, spades, flanged spaded, slotted rings, splices and several other varieties. Wire ranges for the terminals and splices are 22AWG through 2/0 and stud sizes from #2 through 1/2 inch.
Serrations in the crimp barrel provide maximum contact and tensile strength after crimping
600V Operating voltage
105°C Rated temperature

Show

165015 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	-
Wire Gauge	10AWG ~ 12AWG
Contact Plating	Tin
Voltage Rating (AC)	600 V
Operating Temperature (Max)	90 ℃
Voltage Rating (Max)	600 VAC
	Show
Size-Length	31.45 mm
Size-Width	8 mm
Color	Yellow
Contact Material	Copper
Material	Copper
Insulation Material	PVC
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536904000
ECCN Code	EAR99
