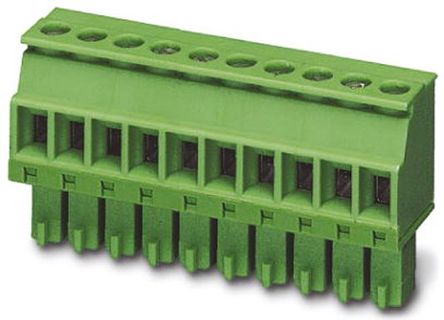

Image is for your reference only,please check specifications for details

1827130 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC27524796
Category:
Terminal Block, Connector Terminal
Datasheet:
Datasheet 3D Model
Description:
Plug, Terminal Block; 8A; 160V; 3.81mm; 3; Screw; 2.5kV; 160V; Polyamide
Stock Locations:
Availability:
168 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.72

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1827130 is a 3-position green pluggable PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M2 screw connection. This MCVR 1,5/ 3-ST-3,81 terminal block has fully developed contact geometries and surfaces. It accepts 28 to 16AWG wire range.
Generously dimensioned wiring space
Plug-in direction vertical to the conductor axis
Compact dimensions of the MCV 1,5 plug range
7mm Stripping length
A1 Internal cylindrical gage
UL94V-0 Flammability rating

Show

1827130 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Pin Pitch	3.81 mm
Number of Contacts	3 Contact
Gender	Male
Wire Gauge	14AWG ~ 30AWG
Contact Plating	Tin
Voltage Rating (DC)	160 V
Voltage Rating (AC)	160 V
Current Rating	8 A
Number of Rows	1 Row
Number of Circuits	3 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	3 Position
Mounting Angle	180 °
Current Rating (Max)	8 A
Voltage Rating	160 V
Operating Voltage (Max)	160 V
	Show
Size-Length	12.22 mm
Size-Width	10.4 mm
Size-Height	19.1 mm
Housing Color	Green
Color	Green
Contact Material	Copper Alloy
Insulation Material	Nylon
Housing Material	Nylon
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536694040
ECCN Code	EAR99
