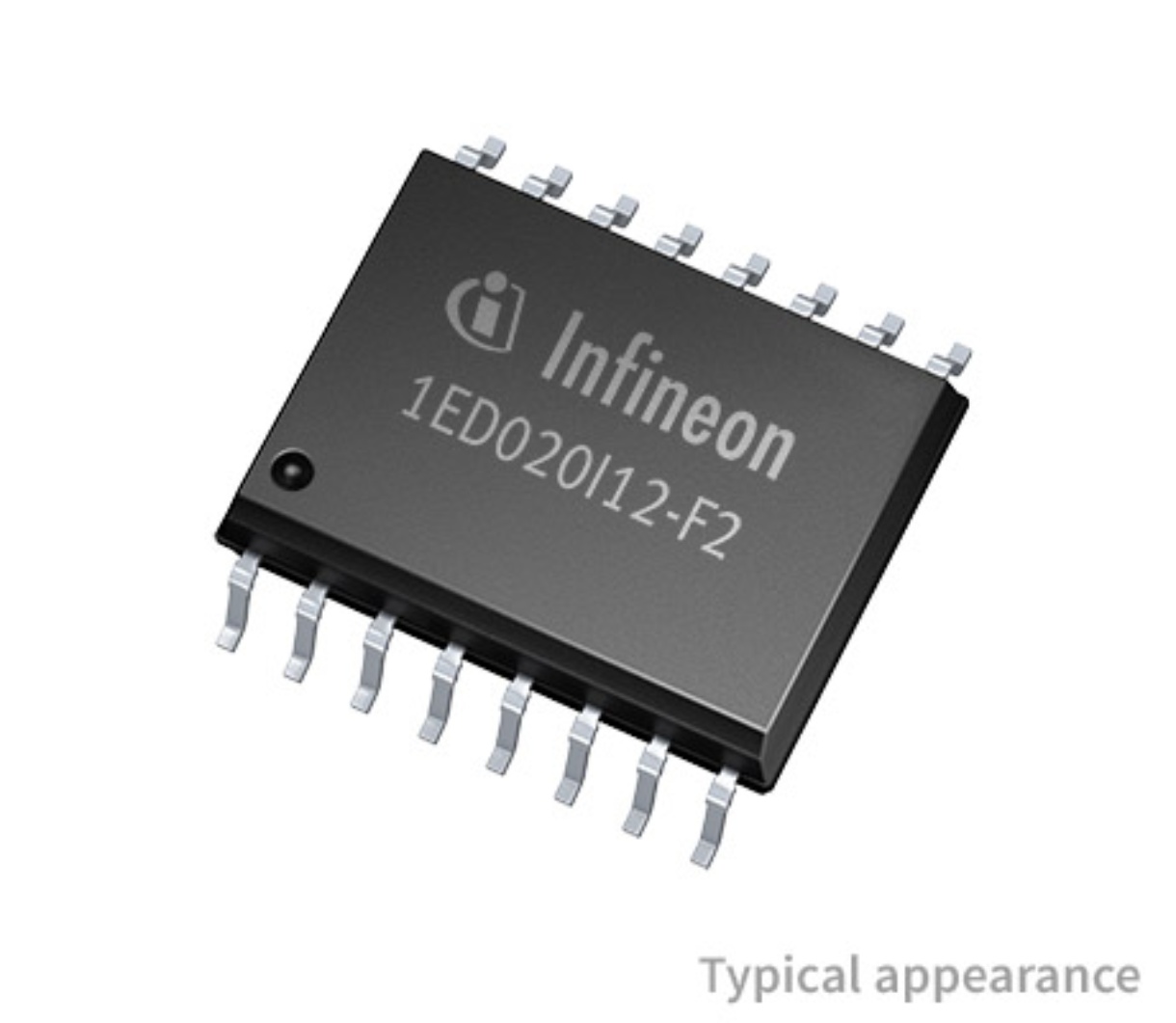

- 1ED020I12F2XUMA1 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC12188092
-
Category:FET Driver
-
Package:PG-DSO-16-15
-
Datasheet:Datasheet 3D Model
-
Description:Half Bridge Based MOSFET Driver, 2A, PDSO16, GREEN, PLASTIC, SOP-16
-
Stock Locations:
-
Availability:275 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.7
Updated at 12/07/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- 1200V Coreless Transformer isolated Driver Ics
- 2 A rail-to-rail outputs
- Protection function
- V(cesat)-detection
- Active Miller Clamp
- Benefits:
- Space saving package
- Improved energy efficiency
1ED020I12F2XUMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | PG-DSO-16-15 |
| Supply Voltage (DC) | 5.00V (min) |
| Rise/Fall Time | 30ns, 50ns |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Positions | 16 Position |
| Rise Time | 800 ns |
| Isolation Voltage | 4500 Vrms |
| Output Current (Max) | 2 A |
| Fall Time | 600 ns |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 5.5 V |
| Supply Voltage (Max) | 15 V |
| Supply Voltage (Min) | 5 V |
| Show | |
| Size-Length | 10.34 mm |
| Size-Width | 7.52 mm |
| Size-Height | 2.34 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
