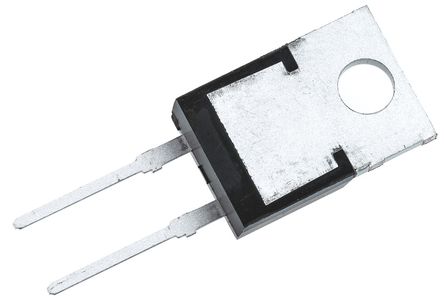

Image is for your reference only,please check specifications for details

RURP8100 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC48660857
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR RURP8100 Standard Power Diode, 1kV, 8A, Single, 1.8V, 100ns, 100A
Stock Locations:
Availability:
318 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.99

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RURP8100 is an Ultrafast Diode offers low forward voltage drop. This device is intended for use as freewheeling and clamping diodes in a variety of switching power supplies and other power switching applications. It is especially suited for use in switching power supplies applications.
100ns at IF=8A Ultrafast recovery
High reliability
Avalanche energy rated

Show

RURP8100 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	1.00 kV
Current Rating	8.00 A
Output Current	≤8.00 A
Forward Voltage	1.8V @8A
Polarity	Standard
Thermal Resistance	2℃/W (RθJC)
Reverse recovery time	100 ns
Forward Current	8 A
Max Forward Surge Current (Ifsm)	100 A
Maximum Forward Voltage (Max)	1.8 V
Forward Current (Max)	8 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	10.67 mm
Size-Width	4.83 mm
Size-Height	9.65 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
