Description

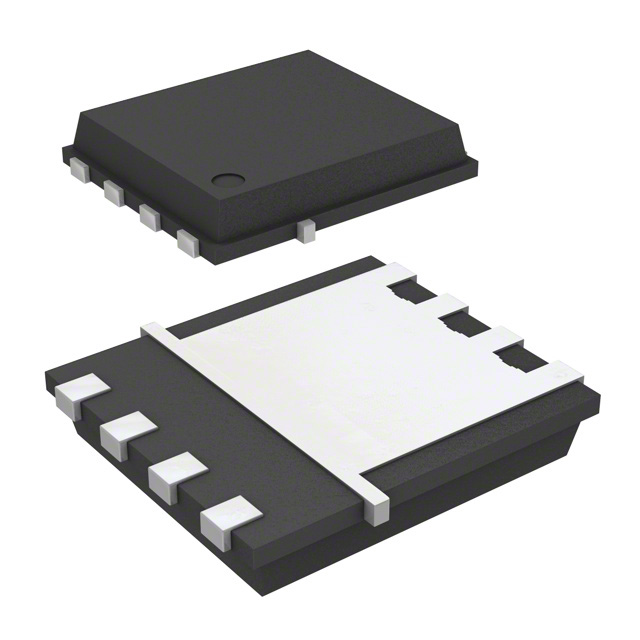

The FDMS86300DC is a N-channel MOSFET produced using Fairchild Semiconductor"s advanced PowerTrench® process. Advancements in both silicon and Dual Cool™ package technologies have been combined to offer the lowest RDS (ON) while maintaining excellent switching performance by extremely low junction-to-ambient thermal resistance. It is suitable as synchronous rectifier for DC-to-DC converters.
Dual Cool™ top side cooling package
High performance technology for extremely low RDS (ON)
100% UIL tested

Show

FDMS86300DC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PQFN-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0026 Ω
Power Dissipation	3.2 W
Threshold Voltage	3.3 V
Input Capacitance	5265 pF
Drain to Source Voltage (Vds)	80 V
Rise Time	25 ns
Input Capacitance (Ciss)	5265pF @40V(Vds)
Input Power (Max)	3.2 W
Fall Time	9 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	125 W
	Show
Size-Length	5.1 mm
Size-Width	5.85 mm
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
