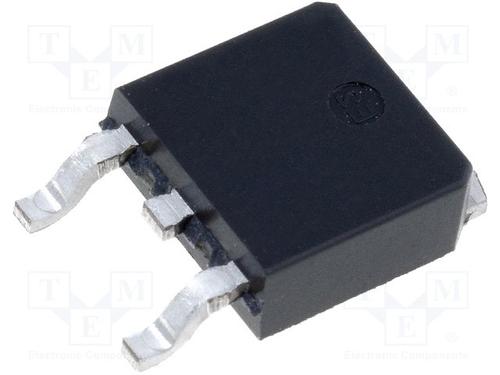

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The AOD4185/AOI4185 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. With the excellent thermal resistance of the DPAK/IPAK package, this device is well suited for high current applications.
-RoHS Compliant
-Halogen Free
Features
VDS (V) = -40V
ID = -40A (VGS = -10V)
RDS(ON) < 15mΩ (VGS = -10V)
RDS(ON) < 20mΩ (VGS = -4.5V)
100% UIS Tested!
100% Rg Tested!

Show

AOD4185 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-252-3
Power Rating	31 W
Polarity	P-CH
Power Dissipation	62.5 W
Drain to Source Voltage (Vds)	40 V
Continuous Drain Current (Ids)	50A
Input Capacitance (Ciss)	2550pF @20V(Vds)
Input Power (Max)	62.5 W
Power Dissipation (Max)	2.5W (Ta), 62.5W (Tc)
	Show
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
