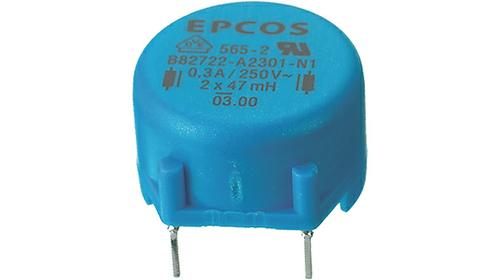

Image is for your reference only,please check specifications for details

B82723A2402N1 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC83340000
Category:
Inductor Choke
Package:
PCB Mount
Datasheet:
Datasheet 3D Model
Description:
Common Mode Choke Through Hole Power Line 4A 2 Lines 60mOhm (Typ) -40℃ ~ 125℃
Stock Locations:
Availability:
10,226 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.07

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

B82723A2402N1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	PCB Mount
Voltage Rating (AC)	250 V
Current Rating	4 A
Flammability Rating	UL 94 V-0
Inductance	2.7 mH
Resistance	60 mΩ
Inductance Tolerance	±30 %
Test Frequency	10 kHz
Current Rating (Max)	4 A
Current Rating (DC)	4 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 VAC
Resistance (DC Max)	60 mΩ
	Show
Size-Length	28 mm
Size-Width	27 mm
Size-Height	16.8 mm
Operating Temperature	-40℃ ~ 125℃
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2011/06/20
