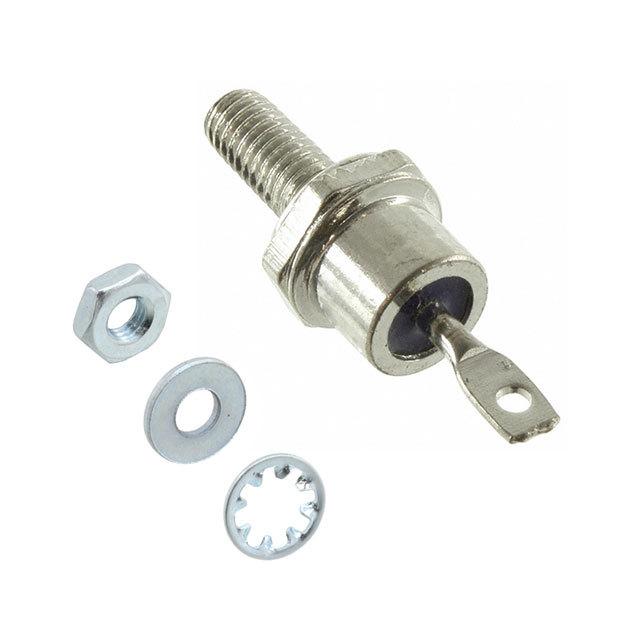

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Diode Standard 200V 12A Chassis, Stud Mount DO-4
1N3891 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Chassis |
| Number of Pins | 2 Pin |
| Case/Package | DO-203AA |
| Forward Voltage | 1.4V @12A |
| Reverse recovery time | 200 ns |
| Maximum Forward Voltage (Max) | 1.4V @12A |
| Forward Current (Max) | 12 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | -55℃ ~ 150℃ |
| Show | |
| Size-Height | 22.79 mm |
| Operating Temperature | 100 ℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
