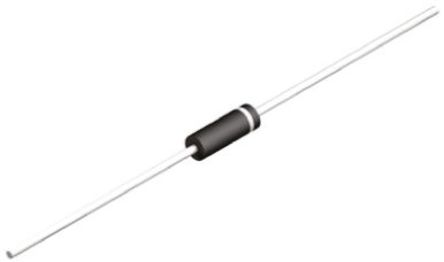

1N5393 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC59301661
Category:
TVS Diode
Package:
DO-204AC
Datasheet:
Datasheet 3D Model
Description:
1N5393 Series 1.5A 200V General Purpose Rectifier Through Hole - DO-15
Stock Locations:
Availability:
10,892 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.03

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1N5393 is a General-purpose Rectifier offers high current capability and low leakage.
Colour band denotes cathode end polarity

Show

1N5393 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-204AC
Voltage Rating (DC)	200 V
Current Rating	1.50 A
Capacitance	25.0 pF
Output Current	≤1.50 A
Number of Positions	2 Position
Forward Voltage	1.4V @1.5A
Polarity	Standard
Power Dissipation	4800 mW
Thermal Resistance	26℃/W (RθJA)
Forward Current	1.5 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	1.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
Junction Temperature (Max)	150 ℃
Power Dissipation (Max)	4800 mW
	Show
Size-Height	7.6 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
