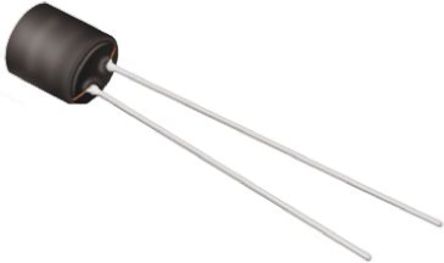

Image is for your reference only,please check specifications for details

22R154C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC13899800
Category:
Inductor
Package:
Radial
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS 22R154C Inductor, 2200R Series, 150μH, 520mA, 0.54Ω, ± 10%
Stock Locations:
Availability:
156 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.75

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This general purpose 22R154C leaded inductor from Murata Power Solutions is available for both power applications and RF applications. This part has a pitch of 3 mm. This leaded inductor has an operating temperature range of -25 °C to 70 °C. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 5.7M(Typ) Hz. It has an inductance of 150u H. This leaded inductor has a maximum DC current of 520m A with a maximum resistance of 540m Ohm. It has a tolerance of 10%. This device utilizes wirewound technology. This product is 10.5 mm tall.

Show

22R154C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Current Rating	520 mA
Capacitance Tolerance	±10 %
Orientation	Vertical
Inductance	150 µH
Self Resonant Frequency	5.7 MHz
Q-Factor	160.0
Resistance	540 mΩ
Resonant Frequency	6.20 MHz
Inductance Tolerance	±10 %
Test Frequency	1 kHz
DC Resistance (DCR)	≤540 mΩ
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Resistance (DC Max)	0.54 Ω
	Show
Size-Length	7.7 mm
Size-Height	10.5 mm
Lead Length	35.0 mm
Weight	1.3 g
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
