Description

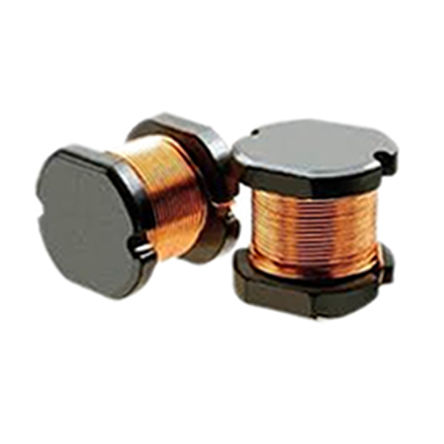

- The 22R686MC is a surface mount unshielded Power Inductor with bobbin wound core. This 2200RM series compact size inductor is a general purpose range of inductor suitable for low to medium current applications. The small footprint makes this inductor ideal for high density applications where a chip inductor will not cope with the power requirement. Support 1kHz frequency and ±10% inductance tolerance.
- Low DC resistance
- Backward compatible with Sn/Pb soldering systems
22R686MC Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 7.8mm x 7mm x 7.5mm |
| Current Rating | 26 mA |
| Capacitance Tolerance | ±10 % |
| Inductance | 68 mH |
| Inductance Tolerance | ±10 % |
| Test Frequency | 1 kHz |
| DC Resistance (DCR) | 242 Ω |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 242 Ω |
| Show | |
| Size-Length | 7.8 mm |
| Size-Width | 7 mm |
| Size-Height | 7.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
