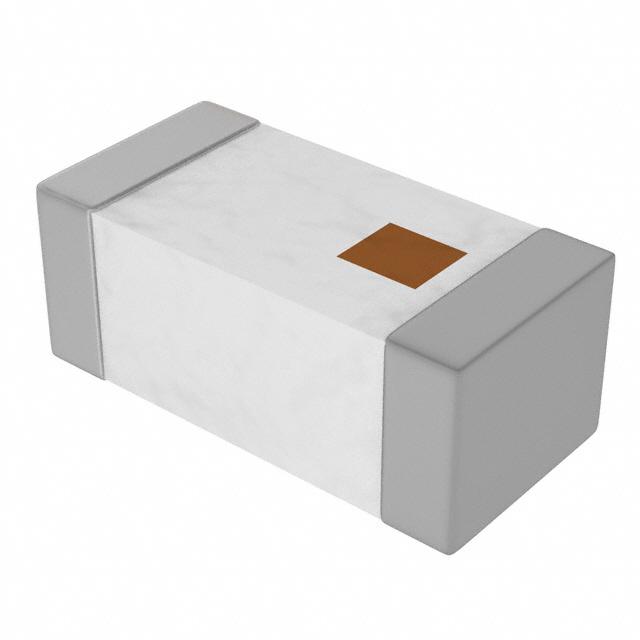

Image is for your reference only,please check specifications for details
- 2450AT18B100E - Johanson Technology
-
Manufacturer:Johanson Technology
-
ManyChip's Part#:MC292850
-
Category:RF Antenna
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:ANTENNA, CERAMIC, 2.45GHz; Bandwidth: 100MHz; Frequency: 2.45GHz; Gain: -0.5dB; Impedance: 50Ω
-
Stock Locations:
-
Availability:1,864 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.83
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 2450AT18B100E is a RF Ceramic Chip Antenna is made using Low Temperature Cofired Ceramic (LTCC) technology which has the ability to embed low and high dielectric constants inside our antenna. This enables them to have great detuning resilience and extreme temperature stability (~2ppm) behaviour. The ceramic chip antenna offers SMD manufacturability in standard or small form-factor designs/application (i.e. Bluetooth, ZigBee, ISM, WLAN antennas) provide great reliability and versatility while maintaining industry demanding performance. This antenna is easy to tune to any unique PCB environment.
- Extreme temperature stability (~2ppm)
- 2X-3X higher dielectric constant than any FR4, PCB or standard plastic
- 125°C Rating capable
- +85 to 125°C operating temperature
2450AT18B100E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD |
| Frequency | 2.45 GHz |
| Power Rating | 3.00 W |
| Bandwidth | 100 MHz |
| Input Impedance | 50 Ω |
| Gain | 0.5 dBi |
| Input Power | 3 W |
| Input Power (Max) | 3000 mW |
| Input Power (Max) | 2 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2 W |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 1.6 mm |
| Size-Height | 1.3 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
