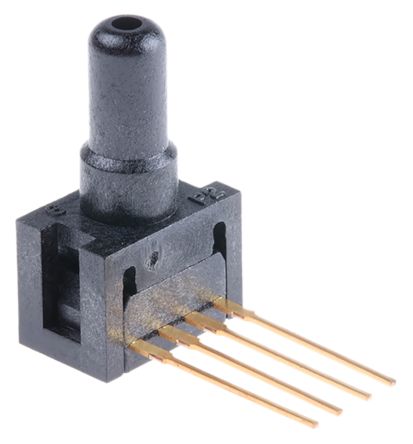

Image is for your reference only,please check specifications for details

24PCEFA6G - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC10850272
Category:
Pressure Sensor
Package:
SIP-4
Datasheet:
Datasheet 3D Model
Description:
HONEYWELL 24PCEFA6G Pressure Sensor, Miniature, Silicon, Voltage, 0.5psi, Differential, Gauge, 12VDC, Straight, 2mA
Stock Locations:
Availability:
282 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 26.85

Updated at 30/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 24PCEFA6G is a gage unamplified non-compensated flow-through Miniature Pressure Sensor measures positive and negative gage pressures. The flow-through port design fits in-line with application. It offers differential and gauge measurement, straight port and voltage output. The sensor features a proven sensing technology that utilizes a specialized piezo-resistive micro-machined sensing element. The low power, non-amplified, non-compensated Wheatstone bridge circuit design provides inherently stable mV outputs over 0.5psi through 250psi sensing ranges.
Minimal dead space - Efficient cleansing and disinfecting
Silicon sensor chip
24" Wire harness with splash proof connector
-40 to 85°C Operating temperature range

Show

24PCEFA6G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP-4
Supply Voltage (DC)	10.0 V
Voltage Rating (DC)	12.0 V
Output Voltage	0mV ~ 35mV
Supply Current	2 mA
Input Impedance	5 kΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Voltage Rating	12 VDC
Supply Voltage	10 VDC
	Show
Size-Height	8 mm
Weight	2 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	9026204000
ECCN Code	EAR99
