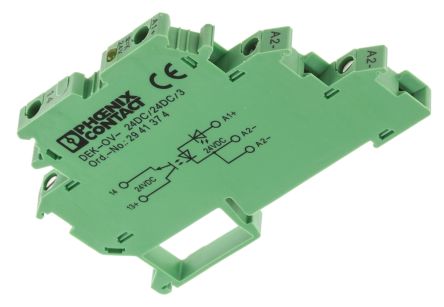

2941374 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC13742173
Category:
Solid State Relay
Package:
Module
Datasheet:
Datasheet 3D Model
Description:
Conn; Term Blk; Power optocoupler; 24VDC Input; 3-30VDC, 3A output; 6.2mm W
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 2941374 is a power solid-state relay Terminal Block with screw connection. The interface DEK terminals offer complete interface functions in terminal block housings with a width of only 6.2mm (0.244-inch). This powerful interface do not only shares the design of the terminal block but also its highly convenient application due to the use of standard terminal accessories. The DEK family offers the suitable solution for every industrial voltage value for signal input as well as output. High switching power is a standard feature of DEKOV optocoupler terminals. Integrated LEDs clearly signal the switching state of electronic terminal block and thus create a very good overview of the coupling level and the system. It is suitable for applications with high switching frequency where electro-mechanical relays rapidly reach the end of their service life you can now apply the wear-resistant power optocoupler DEK-OV-24DC/24DC/3 terminal block.
EB-DIK insertion bridges
Actuator version
Labeling and mounting with user-friendly modular terminal blocks
Integrated output protective circuit
Status indicator
Integrated input circuit
Zero voltage switch at AC output
Protection against polarity reversal and surge protection
Yellow LED operating voltage display
2.5kVAC at 50Hz (1 minute) Input/output test voltage
7mA Typical input current
40µs Typical response time
200µs Typical turn-off time
0.6W Power dissipation for nominal condition
Up to 2.5kVRMS electrical isolation between input and output

Show

2941374 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Case/Package	Module
Number of Contacts	5 Contact
Operating Voltage	30.0V (max)
Current Rating	3 A
Number of Circuits	1 Circuit
Load Current	3 A
Input Current	7 mA
Isolation Voltage	2.5 kV
Coil Voltage	24.0 V
Input Current (Min)	7 mA
Maximum Forward Voltage (Max)	24 V
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating (Max)	24 VDC
Operating Voltage (Min)	3 VDC
Operating Voltage (Max)	30 VDC
Input Voltage	24 VDC
	Show
Size-Length	80 mm
Size-Width	6.2 mm
Size-Height	56 mm
Operating Temperature	-20℃ ~ 60℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536410060
ECCN Code	EAR99
