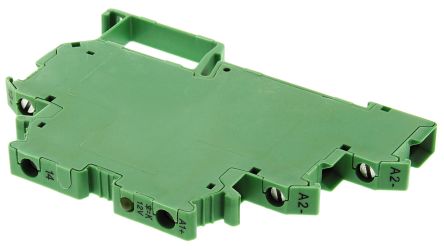

Image is for your reference only,please check specifications for details

2941387 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC46223335
Category:
Solid State Relay
Package:
Module
Datasheet:
Datasheet 3D Model
Description:
PHOENIX CONTACT 2941387 Solid State Relay, 3A, DIN Rail, Screw, 3VDC, 30VDC
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**dc/dc, dc/ac & ac/dc Opto-Couplers**
These DIN rail mount opto-couplers provide an ideal means of interfacing on/off signals to, or from, equipment, whilst providing electrical isolation between their own inputs and outputs. In other words, these may be used to protect equipment by electrically isolating its inputs, outputs, or both. The dc/ac and ac/dc versions also provide a means of interfacing (whilst isolating) ac and dc control voltages.

Show

2941387 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Case/Package	Module
Operating Voltage	30.0V (max)
Load Current	3 A
Input Current	8.5 mA
Isolation Voltage	2.5 kV
Current Rating (Max)	0.009 A
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating (Max)	12 VDC
Operating Voltage (Min)	3 VDC
Operating Voltage (Max)	30 VDC
Input Voltage	12 VDC
	Show
Size-Length	80 mm
Size-Width	6.2 mm
Size-Height	56 mm
Operating Temperature	-20℃ ~ 60℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536410060
ECCN Code	EAR99
