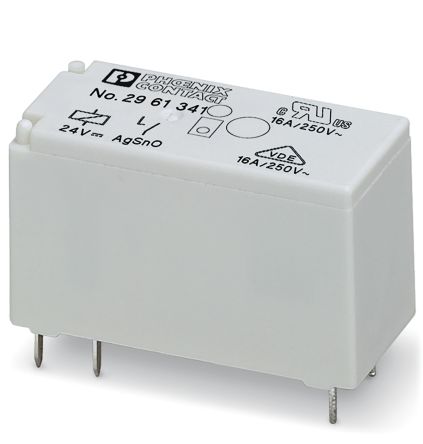

Image is for your reference only,please check specifications for details
- 2961341 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC77384267
-
Category:Power Relay
-
Package:DIP
-
Datasheet:Datasheet 3D Model
-
Description:Электромеханическое реле 24 В DC 1,44 кОм 16 A SPST-NO ((29 мм 12,7 мм 15,7 мм)) THT разъемное реле
-
Stock Locations:
-
Availability:66 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.36
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Серия PLC-RSC**
- Интерфейс PLC с одно- и двухполюсными реле и оптопарами, имеющими одинаковый профиль. Это позволяет устанавливать модули в любой конфигурации с общей системой перемычек и с использованием одних и тех же аксессуаров. Адаптер V8 подключает 8 реле или оптопар к 15-контактному кабелю D-SUB.
2961341 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Input Current | 17 mA |
| Contact Current Rating | 16 A |
| Coil Voltage | 24 VDC |
| Coil Current | 17 mA |
| Coil Resistance | 1.44 KΩ |
| Current Rating (Max) | 16 A |
| Coil Voltage (DC) | 24 V |
| Rating Power (Max) | 4 KVA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (DC Max) | 250 V |
| Voltage Rating (AC Max) | 250 V |
| Show | |
| Size-Length | 29 mm |
| Size-Width | 15.7 mm |
| Size-Height | 15.7 mm |
| Contact Material | Silver Tin Oxide |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
