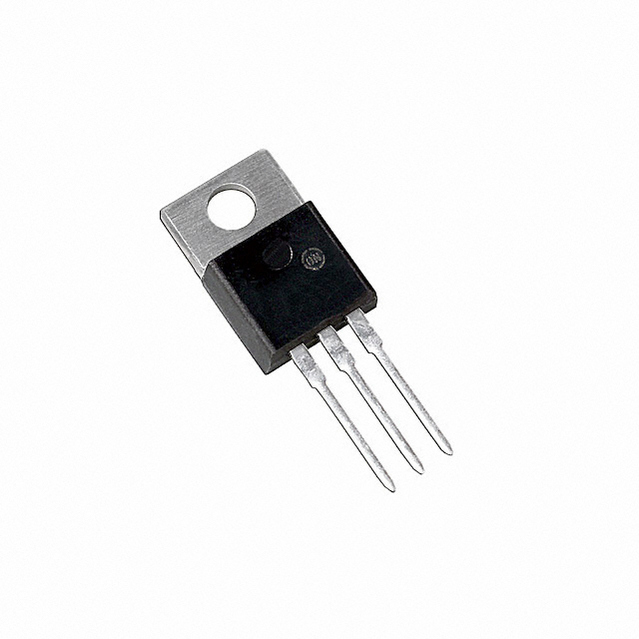

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Darlington Silicon Power Transistors
- Designed for general−purpose amplifier and low speed switching applications.
- • High DC Current Gain −
- hFE = 3500 (Typ) @ IC = 4.0 Adc
- • Collector−Emitter Sustaining Voltage − @ 200 mAdc
- VCEO(sus) = 60 Vdc (Min) − 2N6667
- = 80 Vdc (Min) − 2N6668
- • Low Collector−Emitter Saturation Voltage −
- VCE(sat) = 2.0 Vdc (Max)@ IC = 5.0 Adc
- • Monolithic Construction with Built−In Base−Emitter Shunt Resistors
- • TO−220AB Compact Package
- • Complementary to 2N6387, 2N6388
- • These Devices are Pb−Free and are RoHS Compliant
2N6667 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Voltage Rating (DC) | -60.0 V |
| Current Rating | -10.0 A |
| Polarity | PNP |
| Power Dissipation | 2000 mW |
| Breakdown Voltage (Collector to Emitter) | 60 V |
| Continuous Collector Current | 10A |
| hFE Min | 1000 @5A, 3V |
| hFE Max | 20000 |
| Input Power (Max) | 2 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 2000 mW |
| Show | |
| Operating Temperature | -65℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| Minimum Packing Quantity | 50 |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
