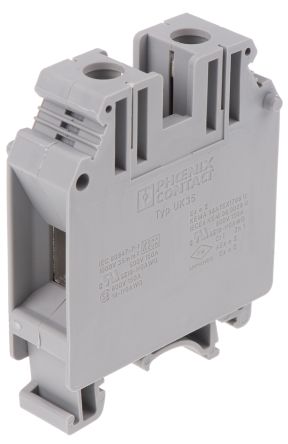

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Universal Terminal Block, 18 to 1/0 AWG Wire, 15.2 mm W, Screw Connection, Gray Color
- **Overview:**
- Screw Clamp terminal blocks are known and accepted worldwide. The screw clamp technology is preferred because it offers top reliability with the best clamping force. Screw clamp terminal blocks have a larger electrical contact area, the lowest contact resistance, the highest pull out force, and the ability to handle multiple wires and larger wire ranges.
- Factory studies have indicated that nuisance electrical downtime is traced back to nothing more than loose or intermittent connections caused by insufficient clamping forces and metal bodies not protected from corrosion. In order to eliminate the possibility of these types of problems, look to manufacturers who offer wire-clamping mechanisms that are designed to prevent screw back-out. In addition, a nickel-plated copper alloy is the preferred choice over steel because it is a better conductor, has better thermal expansion properties and offers better corrosion resistance.
- **UK Modular Terminal Blocks - UK 35 N Gray IEC universal terminal block with screw connection that accomodate AWG 18-1/0.**
- **Features:**
- * Anti-Screw Back Design
- * Universal Mounting
- * Color: Gray
3008012 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail, Screw |
| Pin Pitch | 15.2 mm |
| Number of Contacts | 2 Contact |
| Wire Gauge | 0.75mm² ~ 50mm² |
| Current Rating | 150 A |
| Number of Rows | 2 Row |
| Number of Circuits | 1 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 2 Position |
| Current Rating (Max) | 125 A |
| Voltage Rating (Max) | 1000 V |
| Voltage Rating | 1 kV |
| Operating Voltage (Max) | 1000 V |
| Show | |
| Size-Length | 50 mm |
| Size-Width | 15.1 mm |
| Size-Height | 69.5 mm |
| Housing Color | Gray |
| Color | Gray |
| Housing Material | Nylon |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
