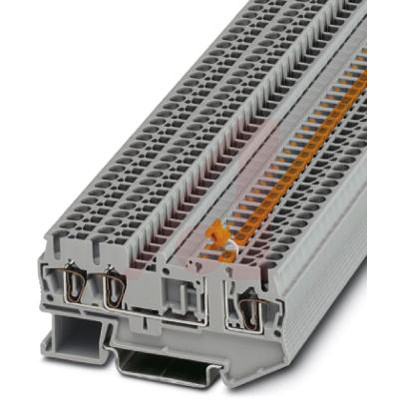

Image is for your reference only,please check specifications for details
- 3037821 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC205907467
-
Category:Terminal Block, Connector Terminal
-
Datasheet:Datasheet 3D Model
-
Description:Разъединительный ножевой клеммный блок; Пружинно-зажимное соединение; AWG: 28-12; 20 А; 400 В; Длина: 72 мм; Ширина: 5,2 мм
-
Stock Locations:
-
Availability:294 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.14
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ** Разъединительный ножевой клеммный блок, Тип соединения: пружинно-зажимное соединение, Сечение: 0,08 мм² - 4 мм², AWG: 28 - 12, Номинальный ток: 20 А, Номинальное напряжение: 400 В, Длина: 72 мм, Ширина: 5,2 мм, Цвет: синий, Монтаж: NS 35/7,5, NS 35/15
- **Особенности:
- * Трех- и четырехпроводные клеммные блоки могут использоваться для многопроводных соединений
- * Удобный монтаж благодаря фронтальному подключению
- * Испытано для применения на железнодорожном транспорте
- * Компактный разъединительный ножевой клеммный блок с нагрузочной способностью по току 20 А
- * Тестовое соединение параллельно точке разъединения для тестовых штекеров диаметром 2,3 мм
- * Универсален и может быть зашунтирован двойной перемычкой для всех задач по энергоснабжению и распределению, экономя время
- **
3037821 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Wire Gauge | 12AWG ~ 28AWG |
| Number of Rows | 1 Row |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 3 Position |
| Show | |
| Size-Length | 72 mm |
| Size-Width | 5.2 mm |
| Size-Height | 36.5 mm |
| Color | Blue |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
