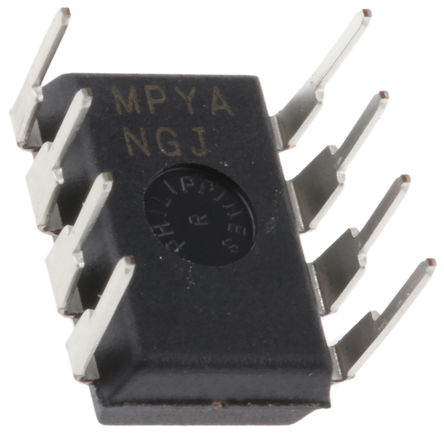

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Supervisor Push-Pull, Totem Pole 1 Channel 8-PDIP
MAX690CPA+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Supply Voltage (DC) | 4.75V (min) |
| Power Rating | 400 mW |
| Supply Current | 3.50 mA |
| Number of Positions | 8 Position |
| Clock Speed | 250 kHz |
| Power Dissipation | 400 mW |
| Threshold Voltage | 4.65 V |
| Output Current (Max) | 20 mA |
| Reset Threshold Voltage (Min) | 4.5 V |
| Reset Threshold Voltage (Max) | 4.75 V |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 400 mW |
| Supply Voltage | 4.75.5.5 VDC |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 9.91 mm |
| Size-Width | 7.87 mm |
| Size-Height | 4.45 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
