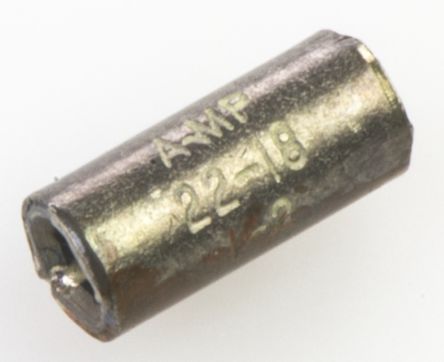

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 322326 is a STRATO-THERM™ serrated Parallel Splice accepts 22 to 16AWG wire.
649°C High temperature rating

Show

322326 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Wire Gauge	16AWG ~ 22AWG
Contact Plating	Nickel
Orientation	Straight
	Show
Size-Length	7.65 mm
Size-Thickness	0.76 mm
Color	Orange
Contact Material	Nickel
Material	Nickel
Insulation Material	Non-Insulated
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536904000
ECCN Code	EAR99
