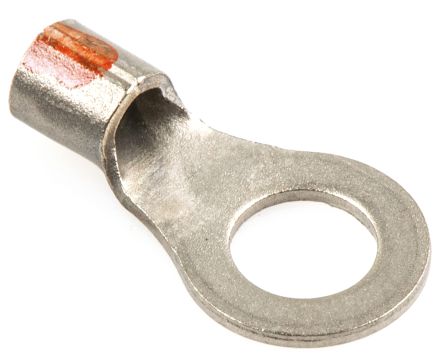

322335 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC6580154
Category:
Terminal
Package:
197
Datasheet:
Datasheet 3D Model
Description:
TE Connectivity STRATO-THERM series Crimp Ring Terminal, M5 Stud Size, 1mm to 2.6mm, 16AWG to 14AWG
Stock Locations:
Availability:
224 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.78

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STRATO-THERM series Terminals, Splices and Spare Wire Caps for high temperature applications. There are two types of these terminals, splices and spare wire caps. One type is insulated, which consist of PIDG ring tongue terminals, splices and spare wire caps insulated with PTFE, post-insulated or pre-insulated and the other type is uninsulated, which consist of DIAMOND GRIP (insulation support) ring tongue terminals, spade tongue terminals and splices with SOLISTRAND (non-insulation support). The uninsulated are available in heat resistant and high temperature. The terminals, splices and spare wire caps accept solid or stranded wire for single applications. The pre-insulated terminals, splices and spare wire caps are designed for reliable performance at maximum temperature of 288 and at 260°C for silver-plated post-insulated terminals and splices. The uninsulated heat resistant terminals and splices operate at maximum temperature of 343 and at 649°C.

Show

322335 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	197
Gender	Female
Wire Gauge	14AWG ~ 16AWG
Orientation	Straight
Termination Style	Ring Lug, Ring
Operating Temperature (Max)	649 ℃
	Show
Size-Length	16.15 mm
Size-Thickness	0.76 mm
Color	Orange
Contact Material	Nickel
Material	Nickel
Insulation Material	Non-Insulated
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536904000
ECCN Code	EAR99
