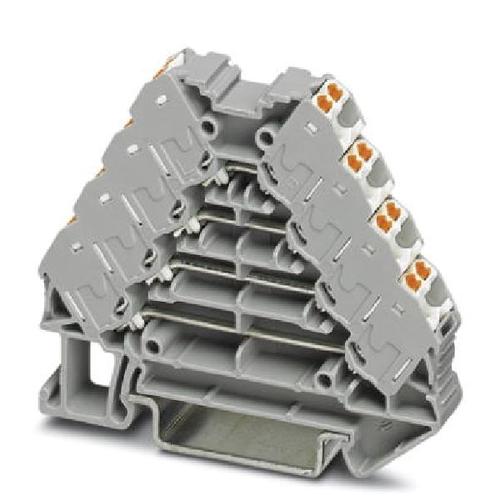

Image is for your reference only,please check specifications for details
- 3270115 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC17941720
-
Category:Terminal Block, Connector Terminal
-
Datasheet:Datasheet 3D Model
-
Description:Marshalling terminal; 250V; 10A; ; AWG:12-26; Push-in conn; W:8.3mm; L:64mm; PTRV 4; /WH
-
Stock Locations:
-
Availability:58 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 15.1
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Marshalling panel, Nom. voltage: 250 V, Nominal current: 10 A, Cross section: 0.14 mm2** \- 2.5 mm2, AWG: 14 - 26, Connection type: Push-in connection, Number of positions: 2, Number of connections: 16, Width: 8.3 mm, Length: 64 mm, Color: gray, Color of connection elements: white, Assembly: NS 35/7,5, NS 35/15
- **Features:
- * High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.
- * Individual color assignment of cable and terminal point to ensure error-free, safe operation
- * Tool-free wiring in a confined space thanks to compact size
- * The 2.3 mm test connection enables testing between the conductors with test pins commonly used in the industry
- **
3270115 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Contacts | 16 Contact |
| Wire Gauge | 14AWG ~ 26AWG |
| Number of Circuits | 4 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 16 Position |
| Current Rating (Max) | 10 A |
| Load Current (Max) | 10 A |
| Voltage Rating (Max) | 250 V |
| Operating Voltage (Max) | 250 V |
| Show | |
| Size-Length | 64 mm |
| Size-Width | 8.3 mm |
| Housing Color | Gray |
| Color | Gray |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
