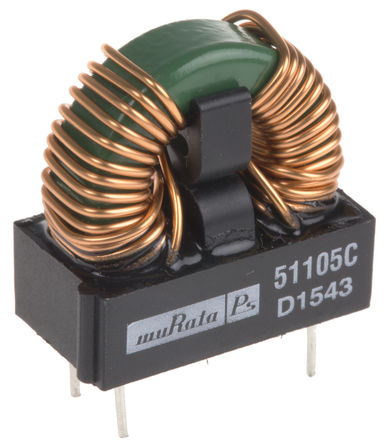

Image is for your reference only,please check specifications for details

51105C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC39097472
Category:
Inductor Choke
Package:
18mm x 10mm x 24mm
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS 51105C Choke, Common Mode, 1mH, 5100 Series, 3.3A, 18mm x 10mm x 24mm
Stock Locations:
Availability:
227 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.87

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

51105C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	18mm x 10mm x 24mm
Current Rating	3.3 A
Inductance	1 mH
DC Resistance (DCR)	≤38 mΩ
Current Rating (Max)	3.3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	38 mΩ
	Show
Size-Length	21.75 mm
Size-Width	21 mm
Size-Height	24 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
