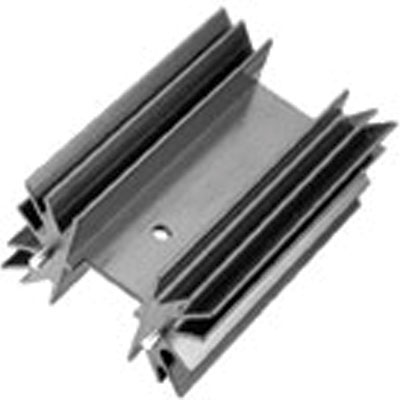

Image is for your reference only,please check specifications for details

530002B02500G - Aavid Thermalloy
Manufacturer:
Aavid Thermalloy
ManyChip's Part#:
MC3776233
Category:
Heatsinks, Heat Sink
Package:
TO-220
Datasheet:
Datasheet 3D Model
Description:
AAVID THERMALLOY 530002B02500G Heat Sink, Square, PCB, With Radial Fins, TO-220, 2.6℃/W, 63.5mm, 41.91mm, 25.4mm
Stock Locations:
Availability:
2,150 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.45

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 530002B02500G is a 25.4mm extruded Heat Sink with aluminium construction, black anodized finish, large radial fins and solderable pins, 2.6°C/W thermal resistance. This heat sink non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.
Vertical mount orientation

Show

530002B02500G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220
Thermal Resistance	2.6 ℃/W
Thermal Resistance @ Forced Air Flow	2.0℃/W @300LFM
	Show
Size-Length	25.4 mm
Size-Width	41.91 mm
Size-Height	63.5 mm
Color	Black
Material	Aluminum
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
