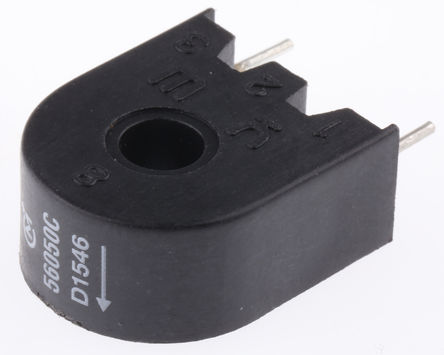

Image is for your reference only,please check specifications for details

56050C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC29078457
Category:
Transformer
Package:
SIP
Datasheet:
Datasheet 3D Model
Description:
Current Transformer 1:50 500VDC 0.133Ω/0.199Ω Prim. DCR 5000uH/9300uH Prim. 10000mA Prim. 3Term. PC Pin Thru-Hole
Stock Locations:
Availability:
234 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.15

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 56050C is a 10A Current Sensing Transformer, designed to monitor AC currents. This can be used for high frequency current sensing, for example in switched-mode power supplies, motor control and electronic lighting ballasts.
20 to 200kHz Frequency Range
Centre Tapped Variants are Available
300°C for 10s Peak Wave Solder Temperature

Show

56050C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	SIP
Frequency	20kHz ~ 200kHz
Current Rating	10 A
Inductance	9.3 mH
Input Current	10 A
Isolation Voltage	500 VDC
DC Resistance (DCR)	0.199 Ω
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	16.79 mm
Size-Width	8.89 mm
Size-Height	20.19 mm
Weight	5.900 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
