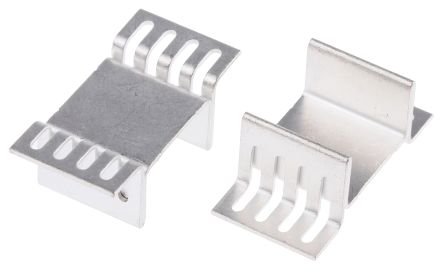

Image is for your reference only,please check specifications for details

573300D00010G - Aavid Thermalloy
Manufacturer:
Aavid Thermalloy
ManyChip's Part#:
MC6673573
Category:
Heatsinks, Heat Sink
Package:
TO-263
Datasheet:
Datasheet 3D Model
Description:
AAVID THERMALLOY 573300D00010G Heat Sink, Square, PCB, For D-Pak Devices, TO-263, 18℃/W, 10.16mm, 12.7mm, 26.16mm
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 573300D00010G is a 26.16mm surface mount Heat Sink with copper construction, tin-plated finish, 18°C/W thermal resistance. This heat sink non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component. It features no attachment holes required in the printed circuit board, 100% matte tin plating with nickel underplate, wing configuration will not interfere with adjacent components, their unique design removes heat indirectly through conduction without making contact with the SMT device like traditional through hole solutions. Compatible with both tin-lead and lead free (Sn/Ag/Cu) solders. Suitable for power supplies, telecommunication equipment, motor Controls, medical equipment, industrial process control equipment and consumer products applications.
Horizontal mount orientation

Show

573300D00010G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-263
Power Dissipation	1.25 W
Thermal Resistance	18 ℃/W
Thermal Resistance @ Forced Air Flow	10.0℃/W @200LFM
	Show
Size-Length	12.70 mm
Size-Width	12.7 mm
Size-Height	10.16 mm
Color	Tin
Material	Copper
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
