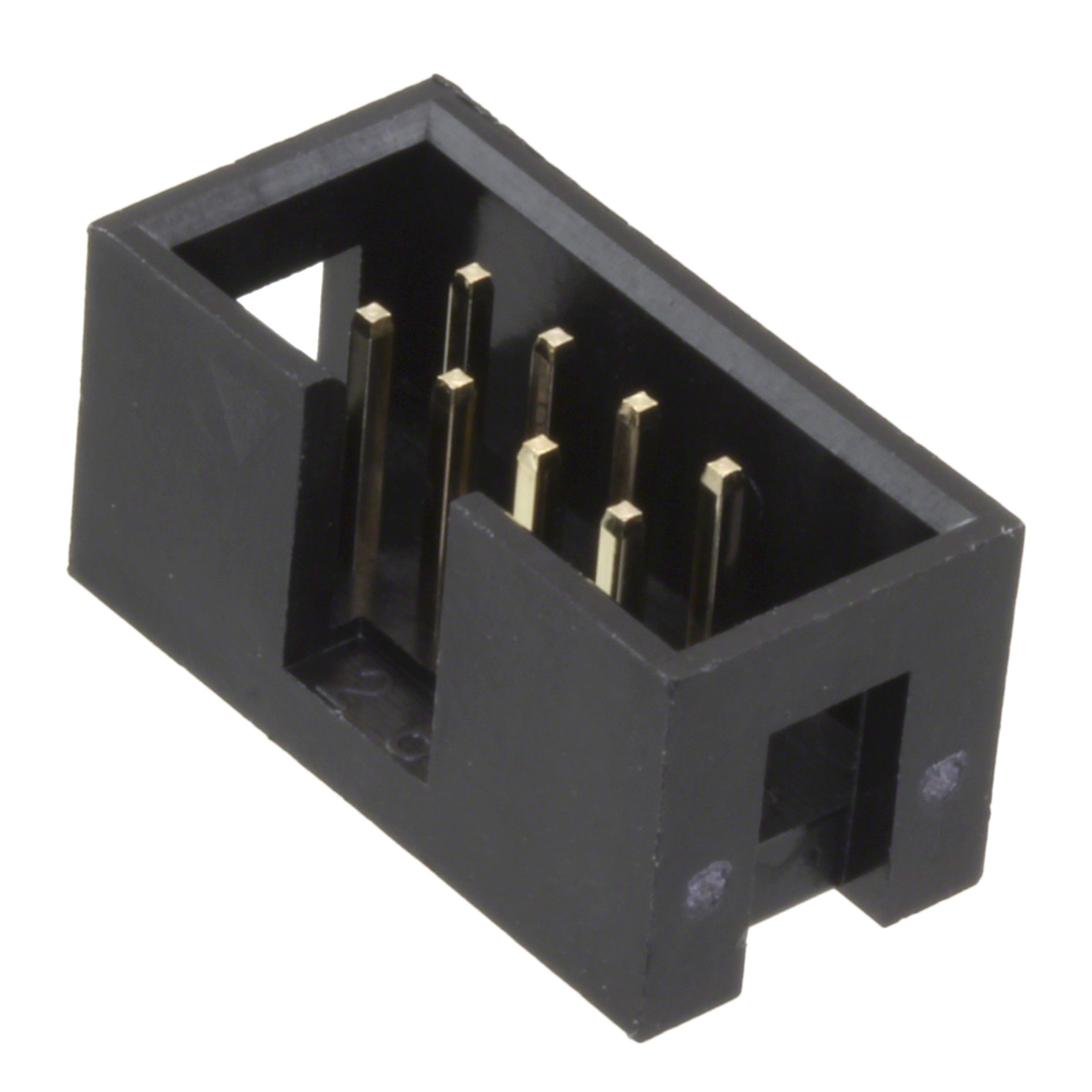

Image is for your reference only,please check specifications for details

61200821621 - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC23332100
Category:
Wire to Board Connector
Datasheet:
Datasheet 3D Model
Description:
WURTH ELEKTRONIK 61200821621 Wire-To-Board Connector, 2.54mm, 8Contacts, Header, WR-BHD Series, Through Hole, 2Rows
Stock Locations:
Availability:
1,021 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.61

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 61200821621 is a 8-way 2-row black through-hole Male Box Header, stamped contacts, 2.54mm pitch. This WR-BHD series header with gold-plated copper alloy contacts, PBT insulator. It mates with 6120xx23021.
3A Current rating
250VAC Voltage rating
UL94V-0 Flammability rating
JEDEC lead-free wave soldering

Show

61200821621 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Contacts	8 Contact
Gender	Male
Contact Plating	Gold
Current Rating	3 A
Insulation Resistance	1 GΩ
Number of Rows	2 Row
Number of Positions	8 Position
Voltage Rating	250 V
	Show
Color	Black
Contact Material	Copper
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
