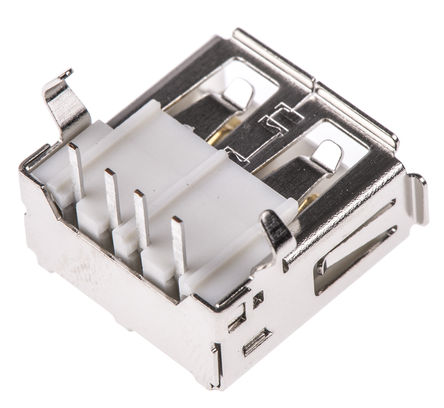

Image is for your reference only,please check specifications for details
- 61400416021 - Wurth Electronics
-
Manufacturer:Wurth Electronics
-
ManyChip's Part#:MC8967868
-
Category:USB Connector
-
Datasheet:Datasheet 3D Model
-
Description:USB Connector, USB Type A, USB 2.0, Receptacle, 4Positions, Through Hole Mount, Right Angle
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 61400416021 from Wurth Elektronik is a through hole, WR-COM standard USB 2.0 type A socket with right angle mounting. USB 2.0 interface supports data transfer rate of up to 480Mbit/s.
- White colour polybutylene terephthalate insulator
- Rated current is 1.5A
- Rated voltage is 30VAC
- Maximum contact resistance is 20mohm
- Copper alloy with gold plated contacts
- Brass with nickel plated shell
- Operating temperature range from -40°C to 105°C
- UL / cULus E323964 certified
61400416021 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Contacts | 4 Contact |
| Gender | Female |
| Contact Plating | Gold |
| Current Rating | 1.5 A |
| Insulation Resistance | 1 GΩ |
| Orientation | Right Angle |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 4 Position |
| Contact Resistance | 20.0 mΩ |
| Number of Mating Cycles | 1500 Cycle |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 30 VAC |
| Show | |
| Color | White |
| Contact Material | Copper Alloy |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
