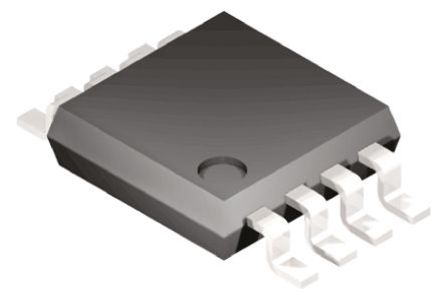

Image is for your reference only,please check specifications for details

NCP2890DMR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3191261
Category:
Audio Amplifier IC
Package:
Micro-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP2890DMR2G Audio Power Amplifier, AB, 1Channel, 1.08W, 2.2V to 5.5V, MSOP, 8Pins
Stock Locations:
Availability:
281 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.87

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP2890DMR2G is a 1W Audio Power Amplifier designed for portable communication device applications such as mobile phone applications. The NCP2890 is capable of delivering 1.0W of continuous average power to an 8R load from a 5.0V power supply and 320mW to a 4R load from a 2.6V power supply. The NCP2890 provides high quality audio while requiring few external components and minimal power consumption. It features a low-power consumption shutdown mode, which is achieved by driving the shutdown pin with logic low. The NCP2890 contains circuitry to prevent from pop and click noise that would otherwise occur during turn-on and turn-off transitions. For maximum flexibility, the NCP2890 provides an externally controlled gain (with resistors), as well as an externally controlled turn-on and turn-off times (with the bypass capacitor). Due to its excellent PSRR, it can be directly connected to the battery, saving the use of an LDO.
Excellent PSRR - Direct connection to the battery
Pop and click noise protection circuit
Ultralow current shutdown mode
External gain configuration capability
External turn-on time configuration capability
Thermal overload protection circuitry
Up to 1nF capacitive load driving capability

Show

NCP2890DMR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	Micro-8
Halogen Free Status	Halogen Free
Output Current	500 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	650 mW
Quiescent Current	1.90 mA
Output Power	1.08 W
Output Current (Max)	500 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	650 mW
Supply Voltage	2.2V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.2 V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
