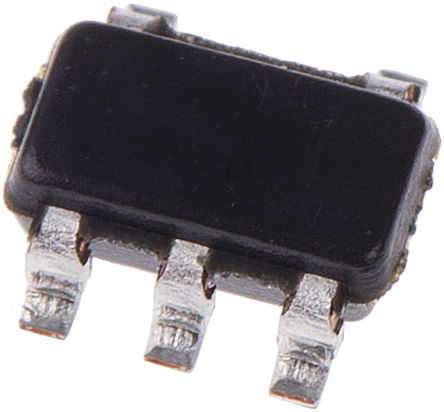

TPS78330DDCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC59968000
Category:
Voltage Regulator
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO 150mA, Ultra-Low Quiescent Current, Iq 0.5A, Low-Dropout Linear Regulator LDO Regulator Pos 3V 0.15A 5Pin TSOT-23 T/R
Stock Locations:
Availability:
1,651 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.85

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS78330DDCT is a 3V fixed output low-dropout (LDO) Linear Regulator designed specifically for battery-powered applications where ultralow quiescent current is a critical parameter. The absence of pull-down circuitry at the output of the LDO provides the flexibility to use the regulator output capacitor as a temporary backup power supply. The TPS783 family is compatible with the TI MSP430 and other similar products. The enable pin (EN) is compatible with standard CMOS logic.
500nA Low quiescent current (IQ)
3% Accuracy over load, line and temperature
Stable with a 1µF ceramic capacitor
Thermal shutdown and overcurrent protection
Green product and no Sb/Br

Show

TPS78330DDCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Supply Voltage (DC)	5.50 V
Power Rating	500 mW
Number of Outputs	1 Output
Output Voltage	3 V
Output Current	150 mA
Number of Positions	5 Position
Power Dissipation	0.5 W
Quiescent Current	500 nA
Output Capacitor Type	Ceramic
voltage rating	130 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.2 V
Output Current (Max)	150 mA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	500 mW
Accuracy	2 %
Supply Voltage (Max)	5 V
Supply Voltage (Min)	2.2 V
Input Voltage	≤5.5 V
	Show
Size-Length	3.05 mm
Size-Width	1.75 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
