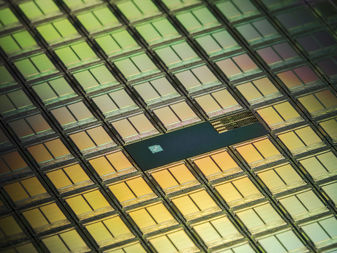

Image is for your reference only,please check specifications for details

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The HMC451 is a general purpose GaAs PHEMT MMIC Medium Power Amplifier which operates between 5 and 20 GHz. The amplifier provides 22 dB of gain, +22 dBm of saturated power and 24% PAE from a +5V supply. Consistent gain and output power across the operating band make it possible to use a common driver/LO amplifier approach in multiple radio bands.
The HMC451 amplifier can easily be integrated into Multi-Chip-Modules (MCMs) due to its small (1.82mm²) size, single supply operation and DC blocked I/Os. All data is tested with the chip in a 50 Ohm test fixture connected via 0.025mm (1 mil) diameter wire bonds of minimal length <0.31mm (<12 mils).
**Applications**
Point-to-Point Radios
Point-to-Multi-Point Radios & VSAT
Test Equipment & Sensors
LO Driver for HMC Mixers
Military & Space
### Features and Benefits
Gain: 22 dB
Saturated Output Power:
+22 dBm @ 24% PAE
Output IP3: +30 dBm
Single Positive Supply:
+5V @ 127 mA
50 Ohm Matched Input/Output
Small Size: 1.35 x 1.35 x 0.1 mm

Show

HMC451 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	4 Pin
Frequency	5GHz ~ 20GHz
Supply Voltage (DC)	4.50V (min)
Supply Current	127 mA
Number of Channels	1 Channel
Power Dissipation	1.2 W
Gain	22 dB
Test Frequency	5GHz ~ 20GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1200 mW
Supply Voltage	5 V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
