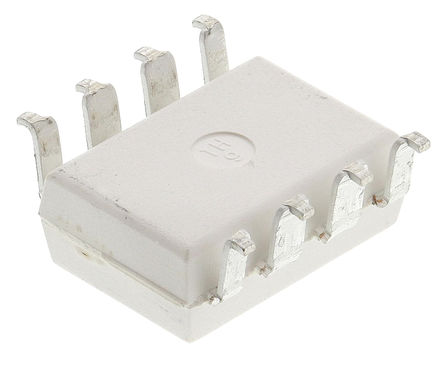

Image is for your reference only,please check specifications for details

6N137SM - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC11957463
Category:
Optocoupler, Optoisolator
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR 6N137SM Optocoupler, Digital Output, 1Channel, 5kV, 10Mbps, Surface Mount DIP, 8Pins
Stock Locations:
Availability:
1,278 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.91

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 6N137SM is a 1-channel 10Mbps high-speed Logic Gate Optocoupler consists of a 850nm AlGaAS LED, optically coupled to a very high-speed integrated photo-detector logic gate with a strobable output. This output features an open collector, permitting wired OR outputs. The coupled parameters are guaranteed over wide temperature range. A maximum input signal of 5mA provided with a minimum output sink current of 13mA (fan out of 8). An internal noise shield provides superior common-mode rejection of typically 10kV/µs.
Fan-out of 8 over -40 to +85°C temperature range
Logic gate output
Strobable output
Wired OR-open collector

Show

6N137SM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DIP-8
Rise/Fall Time	30ns, 10ns
Output Current	50 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Forward Voltage	1.4 V
Power Dissipation	100 mW
Data Rate	10.0 Mbps
Rise Time	30 ns
Isolation Voltage	5000 Vrms
Forward Current	50 mA
Input Current (Min)	30 mA
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.8 V
Forward Current (Max)	50 mA
Fall Time	10 ns
Fall Time (Max)	75 ns
Fall Time (Max)	75 ns
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	40 ℃
Power Dissipation (Max)	100 mW
Supply Voltage	4.5V ~ 5.5V
	Show
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
