Description

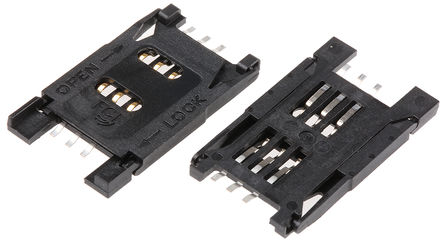

The 7111S2015X02LF is a SIM Card Connector with cover and gold-plated contact.
UL94V-0 Flame-rated Black Thermoplastic Housing
Copper Alloy Contact
1000 Mating Cycles Durability
<100mR Insulation Resistance
<100mR Contact Resistance
-40 to 85°C Operating Temperature

Show

7111S2015X02LF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Number of Contacts	6 Contact
Gender	Male
Contact Plating	Tin, Gold
Insulation Resistance	1000 MΩ
Number of Rows	1 Row
Number of Positions	6 Position
Number of Mating Cycles	10000 Cycle
Current Rating (Max)	1A/触头
Operating Temperature (Max)	90 ℃
Operating Temperature (Min)	-40 ℃
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	29.5 mm
Size-Width	17.2 mm
Size-Height	2.5 mm
Housing Color	Black
Contact Material	Copper Alloy
Operating Temperature	-40℃ ~ 90℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
