Image is for your reference only,please check specifications for details

73JA1K - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC21620663
Category:
Potentiometer
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Res Wirewound POT 1KΩ 5% 2W 10(Mech)Turn 6.35mm (34.93 X 22.23 X 26.99mm) Solder Lug Panel Mount
Stock Locations:
Availability:
8 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 26.78

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

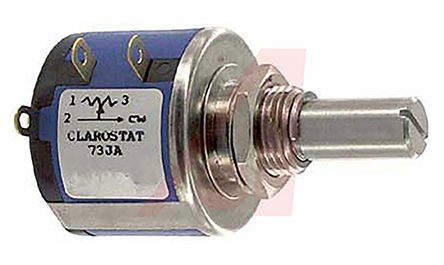

73 Series Precision Potentiometer
The 73 series is a 2 watt precision 10-turn potentiometer. The 73JB is the economical version of the 73JA, offering all the electrical features of the 73JA, but employing a long life nylon shaft construction. The 73JB has a metal bushing with glass filled black nylon shaft. The 73JA has a stainless steel shaft and metal bushing. Both shafts are 1/4" dia, 13/16" long FMS and have 5/16" plain threaded bushing, screwdriver slots, and 50,000 cycles rotational life. End resistance is 0.3% of total resistance or 1 Ω, whichever is greater. 5% tolerance. 500 WV max.
The 73 Series is a 2 watt precision 10-turn potentiometer. The 73JB is the economical version of the 73JA, offering all the electrical features of the 73JA, but employing a long life nylon shaft construction. The 73JB has a metal bushing with glass filled black nylon shaft. The 73JA has a stainless steel shaft and metal bushing. Both shafts are 1/4" dia, 13/16" long FMS and have 5/16" plain threaded bushing, screwdriver slots, and 50,000 cycles rotational life. End resistance is 0.3% of total resistance or 1 Ω, whichever is greater. 5% tolerance. 500 WV max.* Stop Torque:** 75 oz.-in. ** Power Rating:** 2 watts @ 70°C.
0.312 in. bushing length, slotted shaft ending, 500 V working voltage.

Show

73JA1K Specifications
