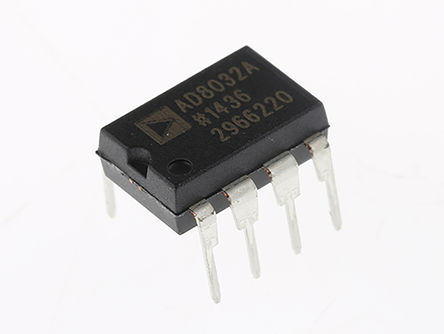

- AD8032ANZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC603300
-
Category:Operational Amplifier, OP Amp IC
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Dual, 2 Amplifier, 80MHz, 30V/µs, 2.7V to 12V, DIP, 8Pins
-
Stock Locations:
-
Availability:293 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.76
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD8032 (dual) is a single supply voltage feedback amplifier that features high speed performance with 80 MHz of small signal bandwidth, 30 V/µs slew rate and 125 ns settling time. This performance is possible while consuming less than 4.0 mW of power from a single +5 V supply. This feature increases the operation time of high speed, battery-powered systems without compromising dynamic performance.
- The AD8032 has true single supply capability with rail-to-rail input and output characteristics and is specified for +2.7 V, +5 V, and ±5 V supplies. The input voltage range can extend to 500 mV beyond each rail. The output voltage swings to within 20 mV of each rail providing the maximum output dynamic range.
- The AD8032 also offers excellent signal quality for only 800 µA of supply current per amplifier; THD is -62 dBc with a 2 V p-p, 1 MHz output signal, and -86 dBc for a 100 kHz, 4.6 V p-p signal on +5 V supply. The low distortion and fast settling time makes it ideal as a buffer to single supply ADCs.
- Operating on supplies from +2.7 V to +12 V and dual supplies up to ±6 V, the AD8032 is ideal for a wide range of applications, from battery operated systems with large bandwidth requirements to high speed systems where component density requires lower power dissipation. The AD8032 is available in 8-lead PDIP, 8-lead SOIC_N, and 8-lead MSOP packages and operates over the industrial temperature range of -40°C to +85°C.
- AD8031 \- Single Amplifier
- ### Features and Benefits
- Low power
- Supply current 800 µA/amplifier
- Fully specified at +2.7 V, +5 V and ±5 V supplies
- High speed and fast settling on 5 V
- 80 MHz, –3 dB bandwidth (G = +1)
- 30 V/µs slew rate
- 125 ns settling time to 0.1%
- Low distortion
- –62 dB @ 1 MHz, VO = 2 V p-p
- –86 dB @ 100 kHz, VO = 4.6 V p-p
- Rail-to-rail input and output
- No phase reversal with input
- 0.5 V beyond supplies
- Input CMVR extends beyond rails by 200 mV
- Output swing to within 20 mV of either rail
- Output current: 15 mA
- High grade option
- VOS (maximum) = 1.5 mV
AD8032ANZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Supply Voltage (DC) | 5.00 V |
| Output Current | 15mA @5V |
| Supply Current | 900 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 1300 mW |
| Common Mode Rejection Ratio | 56 dB |
| Input Capacitance | 1.60 pF |
| Bandwidth | 80 MHz |
| Slew Rate | 30.0 V/μs |
| Gain Bandwidth Product | 50 MHz |
| Input Impedance | 40.0 MΩ |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 450 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 80 MHz |
| Gain Bandwidth | 56 dB |
| Power Dissipation (Max) | 1300 mW |
| Minimum CMRR Range | 56 dB |
| Supply Voltage | 2.7V ~ 12V |
| Show | |
| Size-Length | 9.27 mm |
| Size-Width | 7.24 mm |
| Size-Height | 3.43 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2017/07/07 |
