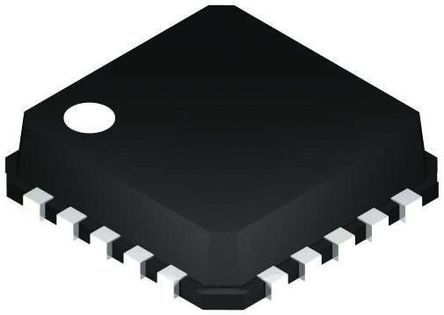

Image is for your reference only,please check specifications for details

AD7689BCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC158856
Category:
Analog to Digital, ADC IC
Package:
LFCSP-20
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7689BCPZ Analog to Digital Converter, 16Bit, 250KSPS, Single, 2.3V, 5.5V, LFCSP
Stock Locations:
Availability:
327 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 47.27

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD7689BCPZ is a 8-channel 16-bit 250kSPS PulSAR® Analogue to Digital Converter (ADC) that operates from a single power supply. It contains all components for use in a multichannel, low power data acquisition system, including a true 16-bit SAR ADC with no missing codes, a 8-channel low crosstalk multiplexer that is useful for configuring the inputs as single-ended (with or without ground sense), differential or bipolar, an internal low drift reference (selectable 2.5V or 4.096V) and buffer, a temperature sensor, a selectable one-pole filter and a sequencer that is useful when channels are continuously scanned in order. It uses a simple SPI interface for writing to the configuration register and receiving conversion results. The SPI interface uses a separate supply, VIO, which is set to the host logic level. Power dissipation scales with throughput.
16-bit Resolution with no missing codes
93.8dB Dynamic range
-100dB at 20kHz THD
Multiple reference types
Internal temperature sensor (TEMP)
No pipeline delay, SAR architecture
3.5mW Power dissipation at 2.5V/200kSPS
12.5mW Power dissipation at 5V/250kSPS
50nA Standby current
ESD sensitive device, take proper precaution while handling the device.

Show

AD7689BCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	LFCSP-20
Supply Voltage (DC)	2.30V (min)
Number of Channels	8 Channel
Number of Positions	20 Position
Number of Bits	16 Bit
Power Dissipation	15.5 mW
Sample Rate	250 ksps
Power Consumption	15.5 mW
Resolution (Bits)	16.0 Bit
Number of ADCs	1 ADC
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	19.2 mW
Number of Input Channels	8 Channel
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.3 V
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	0.83 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
