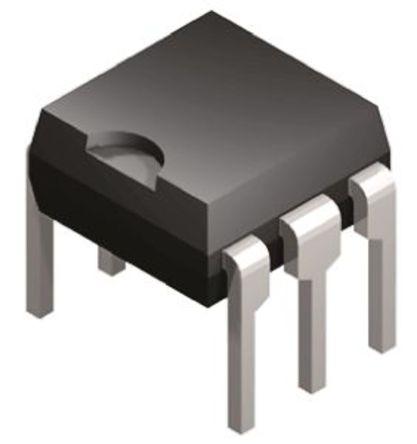

H11G1 - ISOCOM Components
Manufacturer:
ISOCOM Components
ManyChip's Part#:
MC45682566
Category:
Optocoupler, Optoisolator
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
ISOCOM H11G1 Optocoupler, Darlington Output, 1Channel, DIP, 6Pins, 50mA, 5.3kV, 1000%
Stock Locations:
Availability:
2,647 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.89

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The H11G1 is a 1-channel high voltage Darlington Output Optically Coupled Isolator consists of an infrared LED and a high voltage NPN silicon photo Darlington which has an integral base-emitter resistor to optimise switching speed and elevated temperature characteristics.
100V Minimum high BVCEO
100nA Maximum low collector dark current
1mA Low input current

Show

H11G1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP
Output Voltage	100 V
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.5 V
Input Current	10 mA
Power Dissipation	0.35 W
Rise Time	100 µs
Isolation Voltage	5.3 kV
Forward Current	50 mA
Input Current (Min)	50 mA
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	50 mA
Fall Time	20 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	350 mW
	Show
Operating Temperature	-25℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
