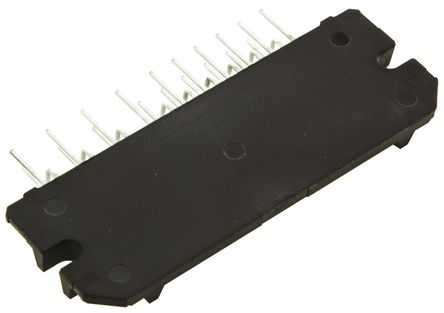

Image is for your reference only,please check specifications for details

IRAMS10UP60B - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC33718396
Category:
FET Driver
Package:
SIP-1
Datasheet:
Datasheet 3D Model
Description:
Controller; Motion; DIP; 25; 20V; 600V; 10A; 275muJ; 2.2W; 150℃; 165muA; 20 + 0.3V
Stock Locations:
Availability:
316 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.17

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IRAMS10UP60B is an Integrated Power Module developed and optimized for electronic motor control in appliance applications such as washing machines and refrigerators. Plug N drive technology offers an extremely compact, high performance AC motor-driver in a single isolated package for a very simple design. An internal shunt is also included and offers easy current feedback and over-current monitor for precise and safe operation. A built-in temperature monitor and over-current protection, along with the short-circuit rated IGBTs and integrated under-voltage lockout functions, deliver high level of protection and fail-safe operation. The integration of the bootstrap diodes for the high-side driver section and the single polarity power supply required to drive the internal circuitry, simplify the utilization of the module and deliver further cost reduction advantages.
Internal shunt resistor
Integrated gate drivers and bootstrap diodes
Temperature monitor
Under voltage lockout for all channels
Matched propagation delay for all channels
Schmitt-triggered input logic
Cross-conduction prevention logic
Lower di/dt gate driver for better noise immunity
0.4 to 0.75kW/85 to 253VAC Motor power range
2000VRMS/1min and CTI >600V Isolation

Show

IRAMS10UP60B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	23 Pin
Case/Package	SIP-1
Frequency	20 KHz
Number of Outputs	3 Output
Output Voltage	450 V
Output Current	10 A
Supply Current	165 μA
Number of Positions	23 Position
Power Dissipation	2.2 W
Isolation Voltage	2000 Vrms
Switching Frequency	20 kHz
Breakdown Voltage (Collector to Emitter)	600 V
Input Bias Current	200 μA
Output Current (Max)	10 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature (Max)	150 ℃
Power Dissipation (Max)	27000 mW
Supply Voltage	20 V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	12 V
	Show
Size-Length	62 mm
Size-Width	5 mm
Size-Height	22.3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Last Time Buy
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
