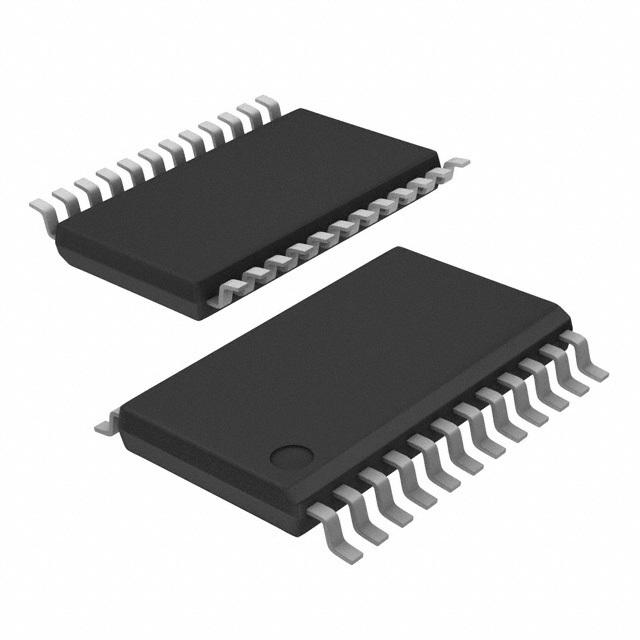

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Computerized binary information can easily be translated into varying audio and video signals using the PCM1789PWR DAC converter, developed especially from Texas Instruments. This device"s digital interface is serial (3-wire). It has a voltage output. This device is based on Delta-Sigma architecture. This DAC has a resolution of 24bit. This DAC has a temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device uses analog and digital power.
PCM1789PWR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | TSSOP-24 |
| Number of Outputs | 2 Output |
| Number of Channels | 2 Channel |
| Number of Bits | 24 Bit |
| Power Dissipation | 0.239 W |
| Sample Rate | 192 ksps |
| Power Consumption | 154 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 239 mW |
| Number of DACs | 2 DAC |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 7.8 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
